Solid–liquid equilibrium of dicyandiamide in different solvents

✅ Solid-liquid equilibrium data of dicyandiamide in various solvents provides the fundamental thermodynamic foundation required for designing, optimizing, and scaling up industrial crystallization, purification, and separation processes. Understanding how this versatile chemical intermediate dissolves across different temperatures and solvent systems allows chemical engineers to maximize yield, minimize energy consumption, and ensure high product purity in large-scale manufacturing operations.

At a Glance

Thermodynamic Principles of Solid-Liquid Equilibrium

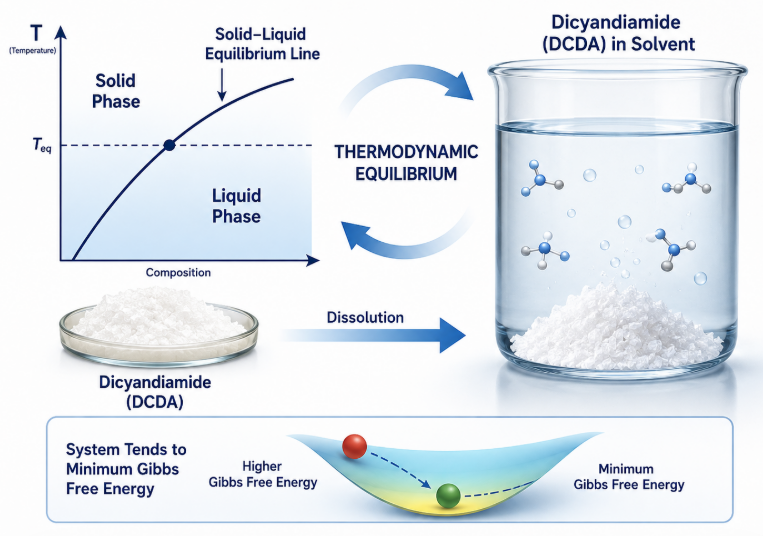

Solid-liquid equilibrium represents a state of thermodynamic balance where the chemical potential of the solid solute equals the chemical potential of the solute in the liquid solution at a specific temperature and pressure. When this equilibrium is reached, the rate of dissolution matches the rate of crystallization, resulting in a saturated solution. For industrial chemical applications, accurate measurement and modeling of this state are critical because they dictate the theoretical limits of product recovery during mass transfer operations.

The dissolution of a crystalline solid into a liquid solvent involves breaking the solute-solute intermolecular forces within the crystal lattice and forming new solute-solvent interactions. This process is governed by the fundamental variables of Gibbs free energy, enthalpy change, and entropy change. For dissolution to occur spontaneously at a given temperature, the overall change in Gibbs free energy must be negative. The enthalpy term reflects the net energy required to disrupt the crystal lattice minus the energy released during solvation, while the entropy term typically represents the increase in disorder as the highly structured crystal matrix breaks down into individual solvated molecules.

In the case of complex nitrogen-rich compounds, the molecular structure possesses multiple functional groups capable of engaging in diverse bonding mechanisms. The presence of these groups means that the solid-liquid equilibrium is highly sensitive to both the temperature of the system and the specific chemical nature of the chosen solvent. Engineers must precisely map these equilibrium curves to prevent premature precipitation in process pipelines and to optimize the thermal cycles of industrial crystallizers.

Solubility in Polar Protic Solvents

Polar protic solvents exhibit strong dissolving power for dicyandiamide due to their ability to form extensive, bidirectional hydrogen-bonding networks with the solute's multiple amino and cyano functional groups. Solvents such as water, methanol, ethanol, and isopropanol possess hydrogen atoms bonded directly to electronegative oxygen atoms. This structural feature allows them to act simultaneously as hydrogen donors and acceptors, effectively solvating the highly polar solute molecules and stabilizing them in the liquid phase.

The solubility of the solute in water increases dramatically with rising temperatures, making water one of the most common solvents utilized for commercial recrystallization processes. At lower temperatures, the strong cohesive energy of the water-water hydrogen bonds and the robust crystal lattice of the solid limit dissolution. However, as thermal energy introduces molecular disruption, the water molecules readily surround the dissolved species. This high temperature dependence is ideal for fractional crystallization, where high-purity Dicyandiamide Industrial grade 99.5% can be precipitated out efficiently by controlled cooling of the aqueous solution.

When evaluating monohydric alcohols, an interesting trend emerges regarding the length of the alkyl chain. Methanol displays the highest solubility among the common alcohols because its small hydrophobic methyl group presents minimal steric hindrance to the formation of solute-solvent bonds. As the molecular weight of the alcohol increases to ethanol and propanol, the growing hydrophobic aliphatic chain disrupts the overall polarity of the solvent matrix. This reduces the specific interaction energy between the solvent and the polar functional groups of the solute, leading to a progressive decline in equilibrium solubility at any given temperature.

1. Water Systems

Water provides an exceptional environment for dissolution due to its high dielectric constant and compact molecular size, which permits dense solvation shells around the solute molecules.

2. Methanol Systems

Methanol acts as an excellent organic alternative to water, offering high solubility at moderate temperatures and a lower boiling point that simplifies solvent stripping and drying operations.

3. Ethanol and Higher Alcohols

Ethanol offers a more moderate solubility profile, which is highly useful when fine-tuning precipitation kinetics or when a slower, more controlled crystal growth rate is required to minimize inclusion defects.

Solubility in Polar Aprotic Solvents

Polar aprotic solvents dissolve dicyandiamide via dipole-dipole interactions and selective hydrogen bonding where the solvent acts exclusively as a hydrogen bond acceptor. Solvents belonging to this category, including acetone, dimethylformamide, dimethyl sulfoxide, and acetonitrile, possess significant dipole moments but lack a hydrogen atom bonded to an electronegative element. Consequently, they cannot donate hydrogen atoms to form bonds, which fundamentally alters the solvation mechanism compared to protic environments.

In solvents like dimethyl sulfoxide and dimethylformamide, the solubility is remarkably high because these molecules feature highly electronegative oxygen or nitrogen atoms with accessible lone pairs. These sites form strong interactions with the acidic hydrogen atoms of the amino groups on the solute molecule. The lack of a self-associated, rigid hydrogen-bonded solvent structure allows these aprotic molecules to interact freely with the solute, often resulting in high saturation concentrations even at room temperature.

Conversely, in weaker polar aprotic solvents such as acetonitrile or ethyl acetate, solubility drops significantly. The localized charge distribution in these solvent molecules does not align as effectively with the complex charge topology of the solute crystal matrix. Understanding these disparities allows process chemists to select appropriate anti-solvents or reaction media where the compound can either be kept securely in solution during synthesis or forced to precipitate out during recovery phases.

1. Dimethyl Sulfoxide Systems

Dimethyl sulfoxide stands out as one of the most powerful solvents for this compound, capable of maintaining high solute loads at ambient temperatures, making it valuable for concentrated chemical formulations.

2. Acetone Systems

Acetone exhibits moderate solubility that varies linearly with temperature, presenting a useful profile for processes that require rapid solvent evaporation due to its high volatility.

3. Acetonitrile Systems

Acetonitrile displays relatively low dissolving capacity for this specific solid, making it an excellent candidate for use as an anti-solvent in specialized crystallization configurations.

Mixed Solvent Systems and Co-Solvency Effects

Mixed solvent systems allow for the precise engineering of solid-liquid equilibrium curves by blending solvents with complementary polarities and bonding characteristics to optimize solubility. In industrial crystallization, relying on a single pure solvent often forces a compromise between low yield, high energy consumption, or unfavorable crystal habits. By utilizing binary or ternary solvent mixtures, engineers can exploit co-solvency or anti-solvent effects to control crystallization paths precisely.

When a polar protic solvent like water is mixed with a miscible aprotic or less polar solvent like ethanol or acetone, the equilibrium solubility does not always follow a simple linear relationship based on the volume fraction. Instead, non-ideal solution behavior often occurs, occasionally resulting in a synergistic solubility maximum where the mixture dissolves more solute than either pure component alone. This phenomenon happens when the local composition of the solvent shell around the solute molecule optimizes both the hydrogen-donating and hydrogen-accepting requirements of the complex structure.

More commonly, mixed systems are deployed to generate controlled supersaturation through anti-solvent crystallization. A high concentration of high purity chemical intermediates can be achieved in a primary solvent, followed by the gradual addition of a secondary miscible solvent in which the solute has extremely low solubility. This addition alters the solvent activity coefficients, reducing the equilibrium threshold and forcing the solute out of solution in a highly uniform crystal size distribution without requiring extreme thermal shifts.

1. Water-Ethanol Mixtures

Water-ethanol blends are widely utilized to adjust the temperature sensitivity of the solubility curve, allowing crystallization to take place at lower temperatures while maintaining control over nucleation.

2. Water-Acetone Mixtures

The addition of acetone to aqueous solutions serves as an effective method for reducing the boiling point of the mixture and accelerating subsequent crystal drying phases.

3. Alcohol-Aprotic Blends

Combining alcohols with polar aprotic solvents creates tailored reaction media that balance the solubility of both polar reactants and non-polar catalysts in multi-step chemical syntheses.

Industrial Crystallization and Purification Applications

Industrial crystallization leverages empirical solid-liquid equilibrium data to control supersaturation, which governs crystal nucleation, growth rates, and the final purity of the chemical product. Without precise knowledge of the saturation curve across a broad temperature range, commercial production runs risk executing unpredictable precipitation events. Such uncontrolled events lead to fine, unfilterable particles, solvent entrapment, or unacceptable levels of amorphous batch scaling.

To produce a high-grade chemical intermediate, industrial operators typically employ cooling crystallization configurations based on the sharp temperature-dependent solubility profiles found in aqueous or alcoholic media. The process begins by dissolving raw material at an elevated temperature to form a clear, undersaturated solution. This solution is passed through clarifying filters to remove any insoluble impurities. The system is then cooled along a highly specific trajectory that tracks just inside the metastable zone width, ensuring that crystal growth occurs smoothly on existing seed crystals rather than triggering spontaneous secondary nucleation.

Furthermore, solid-liquid equilibrium data informs the selection of washing solvents used during cake filtration. The ideal washing liquid must remove adhering mother liquor containing impurities without dissolving a significant portion of the purified crystal bed. By examining solubility tables, engineers can select an organic solvent or a chilled mixed solvent system where the solubility of industrial grade chemical crystals is minimized, thereby maximizing the net recovery yield of the operation.

1. Cooling Crystallization

Cooling crystallization takes advantage of steep solubility drops associated with decreasing temperature, yielding large, well-defined crystals that are easy to filter and wash.

2. Evaporative Crystallization

Evaporative crystallization maintains a constant operating temperature while removing volatile solvent components, which is ideal for solvent systems with flat or shallow equilibrium lines.

3. Anti-Solvent Precipitation

Anti-solvent precipitation introduces a secondary liquid to rapidly alter the chemical potential of the mixture, allowing rapid precipitation under ambient thermal conditions.

Crystallization Optimization Tip: Always determine the precise metastable zone width of your specific solvent system before programming cooling ramps. Operating too close to the unstable supersaturation limit causes massive secondary nucleation, resulting in ultra-fine powders that trap mother liquor and compromise final assay purity.

Temperature Dependence Models and Thermodynamic Correlation

Mathematical models such as the Apelblat, van 't Hoff, and Wilson equations correlate experimental solid-liquid equilibrium data to allow accurate interpolations and process simulations across arbitrary temperature ranges. Raw experimental data points are inherently discrete, whereas automated chemical process simulation software requires continuous mathematical functions to evaluate thermal balances, mass transfer rates, and overall equipment efficiencies. Correlating the experimental solubility values with established thermodynamic models validates the consistency of the data and provides deeper insights into the underlying solution behavior.

The modified Apelblat equation is widely used for correlating the solubility of polar organic compounds in both pure and mixed solvents. It relates the mole fraction solubility to the absolute temperature using three empirical parameters. In this mathematical approach, the natural logarithm of the mole fraction of the solute at saturation is modeled as a function of the reciprocal absolute temperature in Kelvin and the natural logarithm of the absolute temperature. The parameters reflect the non-ideality of the solution and the temperature dependence of the solution's enthalpy change.

Another classic approach is the van 't Hoff equation, which simplifies the relationship by assuming ideal solution behavior over narrow temperature windows. This model plots the natural logarithm of solubility against the reciprocal of absolute temperature, yielding a straight line whose slope is directly proportional to the apparent dissolution enthalpy. For highly non-ideal systems where solute-solvent interactions change dramatically across concentrations, more advanced local composition models like the Wilson or NRTL equations are deployed to compute activity coefficients. These equations ensure that scale-up models remain robust under varying operational pressures and high solute loading.

1. Modified Apelblat Model

The Apelblat model offers high mathematical flexibility and excellent correlation accuracy for highly polar systems where hydrogen bonding introduces non-linear solubility responses over broad temperature spans.

2. Van 't Hoff Model

The van 't Hoff model provides a straightforward, rapid method for verifying thermodynamic data consistency and estimating the apparent enthalpy of dissolution without requiring extensive regression software.

3. Local Composition Models

Models such as NRTL or Wilson account for local molecular environments and concentration gradients within the liquid phase, making them indispensable for complex mixed-solvent simulations.

Conclusion and Strategic Material Selection

An accurate understanding of the solid-liquid equilibrium of dicyandiamide across diverse solvents bridges the gap between laboratory bench science and efficient industrial manufacturing. By selecting the optimal solvent matrix, whether it is a highly responsive polar protic system for thermal crystallization or a tuned mixed-solvent system for anti-solvent precipitation, operators can maximize production efficiency while minimizing solvent waste. Utilizing mathematical correlation models ensures that these processes can be simulated, scaled up, and troubleshot with a high degree of predictability. For global manufacturers and procurement specialists, selecting verified, high-purity inputs is the critical final component that ensures these industrial crystallization systems yield consistent, premium results across all downstream applications.
